High speed computer rotogravure printing machine manufacture of china DNAY800.1100C manufacturer from China Zhejiang Deguang Machinery Co.,Ltd

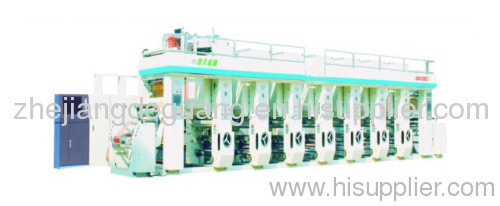

High speed computer rotogravure printing machine manufacture of china

Payment Terms:	T/T,L/C,WU,
Place of Origin:	Zhejiang, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: DNAY800.1100C

Production Capacity: 30sets/month

Plate: Gravure

Color & Page: Multicolor

Means of Transport: Ocean,Land,

Delivery Date: 40days

Type: Rotogravure Printing Machin...

Brand Name: Guoguang

DNAY800.1100C are applicable for continuous multi-colour printing on rolling materials in good printing performance such as cork paper,cellphane,BOPP,

Main characteristics :

1\The main transmission adopts electrician frequency inverter from Shenzhen Inovance to control the vector motor.
2\The Installation of printing cylinders adopts air cylinder to pull core of axis to install cylinders. Horizontal adjustment adopts movement of screw.

3\The ink scrapers can be adjusted up and down as well as its positions.

4\The pressing lifting adopts dual air cylinder to increase the pressure and solenoid valve to locate the position.
5\This system can do vertical registration before printing.and adopt computer to control.
6\The material receiving and feeding adopts dual station.

7\The drying system adopts fully-closed oven and outter secondry air resource returning design.

8\The printing pressing roller adopts concentrated control of man-machine.

Main Technical Parameters:

1).Printing width;420-1100mm

2).Mechanical speed:160m/min

3).Printing speed:120-150m/min

4).Printing plate dia:100-350mm

5).Guiding roller width: 830mm or 1130mm.

6).Unwinding dia: 600mm

7).Rewinding dia: 600mm

8).Colors number:6 colors(Standard model

9).Registration precision: Vertical ±0.1mm
