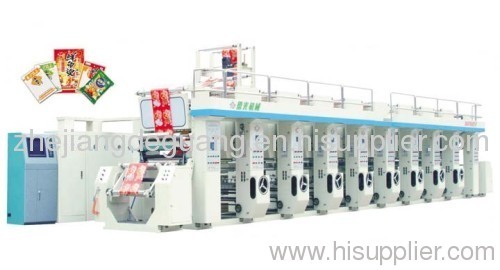

We are the manufacturer and suppliers of rotogravure printing machine in China and specializes in the field for 30 years with good quality and favorable price. DNAY800.1100B model computerized register rotogravure printing machine are applicable for BOPP,PET,PVC,PE and combined film and paper with the same properties.It is multi-color rotogravure printing machine,Printing color from 6 color to 10 color;

1/This is high speed rotogravure printing machine and high precision, high efficiency and less waste.

2/Rotogravure printing machine adopt seven inverter motor controlling system. There is less rewinding waste ,high precision, high efficiency and better registration stability ;

3/The two unwinding and rewinding shafts of plastic film rotogravure printing machine are driven by two vector motors and it adopt pre-transmitting system, we will not stop the rotogravure printing press,save time;

4/The drying system of rotogravure printing machinery adopts fully-closed oven and outer second dry air resource returning design.It will save energy.

5/The cooling section of rotogravure printing machine use large diameter water cooled roller guarantee the film cooling effectively after drying and make the computerized register stable.

Main Technical Parameters:

1).Printing width;420-1100mm

2).Printing speed:120m/min

3).Printing plate dia:100-350mm

4).Print cylinder cross adjustable:30mm

5).Unwinding and rewinding dia: 600mm

6).Registration precision: Vertical ±0.1mm

7).Drying method: Electric heating or oil heating.

8).Total power: 129KW or 142KW
