Plastic Film Gravure Printing Machine DNAY800.1100E manufacturer from China Zhejiang Deguang Machinery Co.,Ltd

Payment Terms:	T/T,L/C
Place of Origin:	Zhejiang, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: DNAY800.1100E

Production Capacity: 30sets/month

Plate: Gravure

Color & Page: Multicolor

Means of Transport: Ocean,Land

Delivery Date: 30days

Type: Rotogravure Printing Machin...

Brand Name: Deguang

It is applicable cork paper,cellphane,BOPP,PET,PVC,PE,paper,broadly applied for all types of super-quality printed matters.

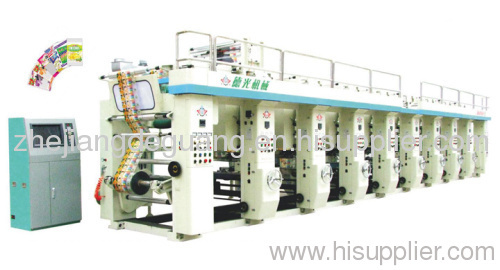

We are the manufacturer and supplier of gravure printing machine in China and specializes in the field for 30 years DNAY800.1100E model gravure printing press are applicable for BOPP,PET,PVC,PE and combined film and paper with the same properties.This machine is medium speed gravure printing machine.

1/ Printing color from 6 color to 10 color. It is high precision, high efficiency and less waste;

2/The medium speed gravure printing machine adopt video inspection ensures the register accuracy;

3/The dry section of gravure printing machine assisted oven on the last color prevent the color adhesive to the printing plate when the last color cover all the printing plate;

4/The rewinding of gravure printing press adopt two torque motor control two rewinding shafts do not to stop the machine and ensure the same line speed of rolling during high speed running;

5/The gravure printing machine adopt heavy doctor blade prevent the film from stretching during high speed printing and adjusted 3 direction to make the best angle;

6/Gravure printing press adopt dual station turret and positive and negative 360º inching rotation.More convenient.

Main Technical Parameters:

1/Printing width:420-1100mm

2/Printing speed:80-100m/min

3/Printing plate dia:100-350mm

4/Unwinding and rewinding dia: 600mm

5/Registration precision: Vertical ±0.1mm

6/Drying method: Electric heating or oil heating.

7/Total power: 73KW or 83KW

8/Weight: 9000kg 10000kg

9/Dimension:800 model: 11050×2900×3100mm

1100 model: 11050×3200×3300mm
